£56.16 Original price was: £56.16.£53.35Current price is: £53.35. Inc VAT
Free Delivery on Novia orders over £1200 (incl VAT)
£56.16 Original price was: £56.16.£53.35Current price is: £53.35. Inc VAT
Free Delivery on Novia orders over £1200 (incl VAT)
Everyday Low Prices
Our huge buying power with leading manufacturers means lower prices for you
Novia Black+ FC125 is a high-quality, strong and versatile floor cassette membrane designed for timber frame construction. Installed around the floor cassette and connected to the internal Air & Vapour Control Layer (AVCL), it helps maintain airtightness through intermediate floor junctions while reducing the risk of interstitial condensation around wall panel connections.
The 3-layer membrane features a microporous core, Class W1 water resistance, airtight performance and high vapour permeability, providing a dedicated solution for maintaining continuity of the building envelope at potentially difficult floor-to-wall junctions.

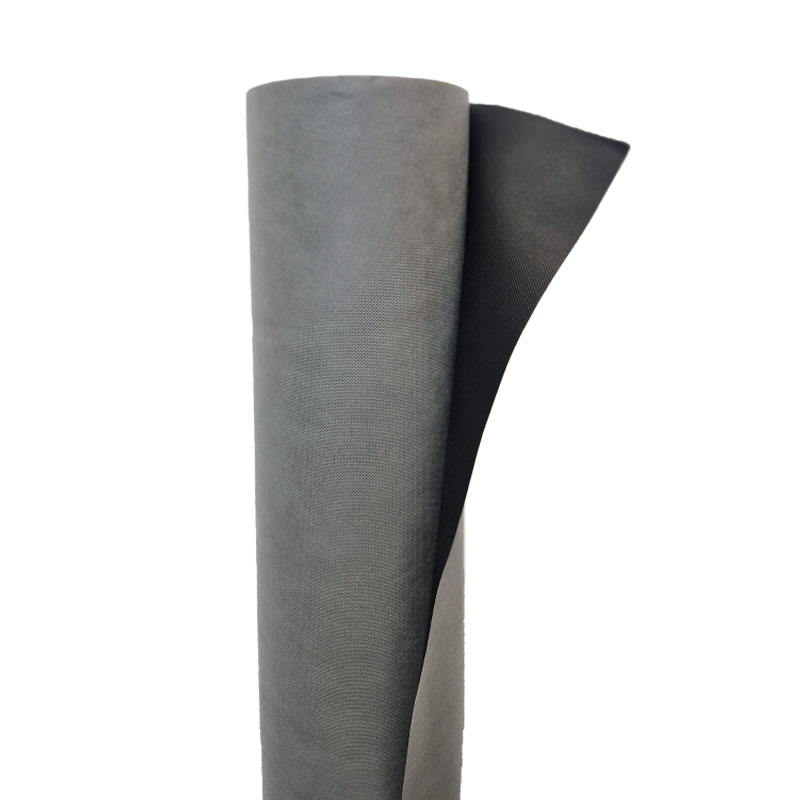

Supplied as a 1m x 50m roll, each roll provides 50m² nominal coverage.
Key benefits include:
A floor cassette membrane is used within timber frame construction to help maintain the continuity of the building’s airtightness layer at intermediate floor junctions.
Floor junctions can create challenging interfaces between different sections of the internal Air & Vapour Control Layer.
Novia Black+ FC125 is installed around the floor cassette and connected to the internal AVCL above and below the floor junction, creating continuity through this area of the construction.
One of the primary functions of Novia Black+ FC125 is to maintain airtightness through floor junctions in timber frame walls.
The membrane is installed around the floor cassette before being appropriately connected and sealed to the internal AVCL.
This creates a continuous air control layer between the wall sections above and below the intermediate floor.
Correct sealing of these interfaces is important to the performance of the completed airtightness layer.
Novia Black+ FC125 helps reduce the risk of interstitial condensation around connections to wall panel details.
By maintaining continuity between the floor cassette membrane and the internal AVCL, the system helps control unwanted air and moisture movement through these potentially vulnerable junctions.
An appropriate AVCL should also be installed on the warm side of the insulation as part of the complete wall construction.
Novia Black+ FC125 uses a 3-layer construction with a microporous core.
The membrane combines:
These properties make it suitable for installation around floor cassette junctions within timber frame wall construction.
Novia Black+ FC125 achieves:
Class W1 water resistance to EN 1928
This provides tested resistance to water penetration while the microporous construction allows the membrane to remain vapour permeable.
Novia Black+ FC125 provides the combination of being airtight while remaining highly vapour permeable.
Its airtight properties allow the membrane to maintain continuity of the air control layer around the floor cassette when correctly connected to the internal AVCL.
At the same time, its vapour permeability supports moisture management around the floor and wall junction.
Novia Black+ FC125 is specifically designed for use within timber frame wall applications.
Typical applications include:
Its dedicated 1m width provides a practical format for wrapping and detailing floor cassette junctions.
The membrane is supplied completely black on one side and grey on the reverse, with no text or images apart from a 150mm overlap line.
This provides a clear reference during installation when forming the required membrane overlap.
Novia Black+ FC125 should be appropriately connected to the internal Air & Vapour Control Layer above and below the floor junction.
Novia offers dedicated installation tapes for forming these connections.
Novia Double Sided Butyl Tape can be used when connecting the Black+ FC125 floor cassette membrane to the internal AVCL.
The tape helps create the required sealed connection between the two membrane layers.
Novia Breather Membrane Lap Tape (BMLT) is used along the overlap to complete the membrane connection.
Using the appropriate installation tapes helps create the correct seal required for the AVCL system to perform effectively.
Novia recommends installing an appropriate Air & Vapour Control Layer on the warm side of the insulation.
Suitable Novia AVCL products can include:
Black+ FC125 can then be connected to the internal AVCL to maintain continuity around the floor junction.
Effective moisture control is particularly important within insulated timber frame construction.
Novia advises that even relatively small amounts of moisture contamination within insulation can have a substantial effect on its achieved thermal performance.
For this reason, an appropriate AVCL should be installed on the warm side of the insulation, with Black+ FC125 used to maintain continuity through the floor cassette junction.
Sufficient ventilation should also be incorporated to comply with relevant Building Regulations.
Floor cassette applications require a membrane capable of withstanding the handling and detailing involved around complex timber frame junctions.
Novia Black+ FC125 provides good tensile and nail tear strength, helping provide the durability required during correct installation.
The membrane should nevertheless be handled carefully to avoid unnecessary tears and punctures.
Any damage occurring during installation should be appropriately repaired using suitable Novia tapes.
Novia Black+ FC125 achieves:
Class E Fire Classification to EN 13501-1
The membrane should be specified as part of the complete wall and floor construction according to the requirements of the individual project.
Novia Black+ FC125 is specified as:
These standards cover flexible sheets used as underlays within roof and wall construction respectively.
Each roll measures:
1m wide x 50m long
Providing a nominal area of:
1m x 50m = 50m²
Actual usable coverage will depend on the floor cassette dimensions, required overlaps, junction details, cutting and general wastage.
| Specification | Details |
|---|---|
| Product | Novia Black+ FC125 |
| Product Type | Floor Cassette Membrane |
| Construction | 3-Layer |
| Core | Microporous |
| Roll Width | 1m |
| Roll Length | 50m |
| Nominal Coverage | 50m² |
| Water Resistance | Class W1 to EN 1928 |
| Airtight | Yes |
| Vapour Performance | Highly Vapour Permeable |
| Tensile Strength | Good |
| Nail Tear Strength | Good |
| Fire Classification | Class E to EN 13501-1 |
| UKCA Standards | EN 13859-1 & EN 13859-2 |
| Face Colour | Black |
| Reverse Colour | Grey |
| Overlap Guide | 150mm Line |
| Primary Application | Timber Frame Floor Cassette Junctions |
Novia Black+ FC125 is a floor cassette membrane designed for timber frame construction.
It is installed around the floor cassette and connected to the internal Air & Vapour Control Layer to help maintain airtightness through the intermediate floor junction.
Each roll measures 1m wide x 50m long.
A 1m x 50m roll provides 50m² nominal coverage.
Actual usage will depend on the floor cassette dimensions, overlaps, detailing, cutting and wastage.
A floor cassette membrane is used to maintain continuity of the airtightness layer through intermediate floor junctions, particularly within timber frame construction.
Black+ FC125 is installed around the floor cassette at the wall and floor junction.
It is then connected to the internal AVCL above and below the floor to maintain continuity of the air control layer.
Yes. The membrane is designed to reduce the risks of interstitial condensation around connections to wall panel details.
It should be used as part of an appropriately designed construction incorporating an AVCL on the warm side of the insulation.
Yes. Novia Black+ FC125 is specified as airtight and is designed to maintain airtightness around the floor junction when correctly installed and sealed.
Yes. Despite being airtight, the membrane remains highly vapour permeable.
Airtightness relates to controlling air movement, while vapour permeability relates to the diffusion of water vapour through the material, so a membrane can provide both properties.
Yes. The membrane achieves Class W1 water resistance to EN 1928.
Novia Black+ FC125 has a Class E Fire Classification to EN 13501-1.
Novia recommends:
Correct sealing is important to maintaining continuity of the air and vapour control system.
Novia Black+ FC125 can be connected to an appropriate internal Air & Vapour Control Layer.
Novia examples include its 500, 1000 and 1200 gauge virgin-grade polythene AVCLs and VC200 Reflective AVCL.
The membrane is unprinted apart from a 150mm overlap line, which provides a reference for forming the required overlap during installation.
Yes. Black+ FC125 is specifically designed for use within timber frame wall and floor cassette applications.
Novia advises handling the membrane carefully to avoid tears and punctures.
Any on-site damage should be repaired using appropriate Novia installation tapes.
Novia products should be stored:
External storage should only be temporary. If stored outside, the product should be protected from wind, rain, frost and UV exposure.
Pallets should not be stacked.
Yes. Appropriate ventilation should be incorporated into the construction to comply with relevant Building Regulations and the requirements of the overall building design.
Yes. The 50m² figure represents the nominal area of the complete roll.
Actual requirements will depend on the floor cassette dimensions, 150mm overlap details, junction configuration, cutting and general wastage.
Novia Black+ FC125 provides a dedicated solution for maintaining airtightness around intermediate floor cassette junctions within timber frame construction.
The strong 3-layer membrane with microporous core combines Class W1 water resistance with airtight and highly vapour-permeable performance, helping reduce the risk of interstitial condensation around wall panel connections.
Installed around the floor cassette and appropriately sealed to the internal AVCL above and below the floor junction, FC125 helps maintain continuity of the building’s air control layer through a potentially difficult construction detail.
Supplied as a 1m x 50m roll providing 50m² nominal coverage, the membrane also incorporates a 150mm overlap line to assist correct installation.
| Technical Data Sheet |
