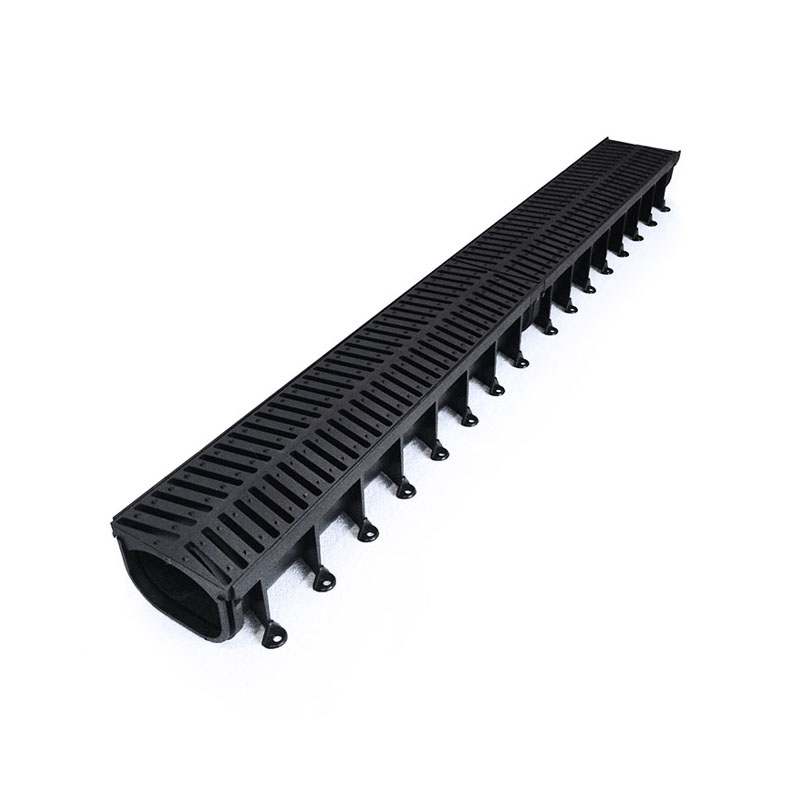

Supadrain Pro Line Channel Drain with Plastic Grate – 1000mm (D1001)

Trade prices for all

Fast online ordering

Click & Collect

Nationwide Delivery

Trade prices for all

Fast online ordering

£9.60 Inc VAT

Delivery from £18 - Calculated during checkout based on your address and quantity.
Free Delivery on orders over £900
Also available for Free Click & Collect from Rossendale, BB4*

Delivery: 3 - 5 Days

Order Online

Best Prices

Supadrain Pro Line Channel Drain with Plastic Grate – 1000mm (D1001)

£9.60 Inc VAT

Delivery from £18 - Calculated during checkout based on your address and quantity.
Free Delivery on orders over £900
Also available for Free Click & Collect from Rossendale, BB4*

Delivery: 3 - 5 Days

Everyday Low Prices

Our huge buying power with leading manufacturers means lower prices for you

Supadrain Pro Line Channel Drain with Plastic Grate (D1001)

The Supadrain Pro Line Channel Drain with Plastic Grate is a strong, lightweight and easy-to-install modular channel drainage system designed to collect and manage surface water around paths, patios, garden areas and other suitable pedestrian applications.

Each 1 metre channel drain is supplied as two 500mm sections, making the system easier to transport, handle and install than longer individual drainage channels. Multiple sections can be connected together to create longer linear drainage runs as required.

Manufactured in Great Britain from recycled polypropylene, Supadrain Pro Line combines durability with a lightweight construction and can be recycled at the end of its useful life. The system has an A15 load classification and is supplied with a 10-year guarantee.

What Is Supadrain Pro Line Channel Drain Used For?

Supadrain Pro Line provides a practical solution for collecting surface water and directing it towards a suitable drainage outlet.

Typical applications include:

  • Paths and walkways
  • Patios
  • Garden areas
  • Domestic drainage projects
  • Pedestrian areas
  • Around buildings and entrances
  • Other suitable A15 drainage applications

Its modular construction allows additional channel sections to be connected together, making it easy to create a drainage run to suit the required length.

1 Metre Modular Channel Drain

Each Supadrain Pro Line unit provides 1000mm (1 metre) of channel drainage, supplied as two 500mm channel sections with plastic grates.

The shorter sections make the system easier to position and install, while multiple D1001 units can be connected together for longer drainage runs.

A15 Load Rated Channel Drainage

Supadrain Pro Line has an A15 load classification, making it suitable for appropriate pedestrian and light-duty drainage applications.

The drainage channel should always be installed in accordance with the manufacturer’s requirements and used only in locations appropriate for its A15 classification.

Supadrain Pro Line Channel Drain Features

  • 1000mm (1m) channel drainage coverage
  • Supplied as 2 x 500mm channel sections
  • Plastic drainage grates
  • A15 load classification
  • Strong modular construction
  • Lightweight and easy to handle
  • Quick and straightforward to assemble
  • 8 knockouts per metre
  • Compatible with an adaptor for connection to 110mm drainage pipe
  • Manufactured from recycled polypropylene
  • Recyclable at the end of its useful life
  • 10-year guarantee
  • Manufactured in Great Britain

Supadrain Pro Line Specification

Product: Supadrain Pro Line Channel Drain with Plastic Grate
Product Code: D1001
Material: Polypropylene
Grate Material: Plastic
Load Classification: A15
Coverage: 1000mm (1m)
Individual Channel Length: 500mm
Sections Supplied: 2
Knockouts: 8 per metre
Outlet Connection: Compatible with 110mm adaptor
Guarantee: 10 years
Manufactured: Great Britain

Pack Contents

Each 1 metre pack contains:

  • 2 x 500mm Supadrain Pro Line Channel Drain Sections with Plastic Grates (D1001)

Total coverage: 1000mm (1 metre)

Connecting Supadrain Pro Line to Drainage

Supadrain Pro Line incorporates 8 knockouts per metre, providing flexibility when planning the drainage outlet.

A compatible adaptor can be used to convert the outlet for connection to 110mm drainage pipe, allowing collected surface water to be directed into a suitable drainage system.

Frequently Asked Questions

How long is the Supadrain Pro Line Channel Drain?

Each pack provides 1000mm (1 metre) of channel drainage, supplied as two individual 500mm sections.

Does the Supadrain channel include the plastic grate?

Yes. The D1001 Supadrain Pro Line Channel Drain is supplied complete with plastic grates.

Can I connect several Supadrain channels together?

Yes. Supadrain Pro Line is a modular channel drainage system, allowing multiple sections to be connected together to create longer drainage runs.

What is the load rating of Supadrain Pro Line?

Supadrain Pro Line has an A15 load classification and should be used only in applications appropriate for this load class.

Can Supadrain Pro Line connect to 110mm drainage pipe?

Yes. A compatible adaptor can be used to connect the Supadrain outlet to 110mm drainage pipe.

How many outlet knockouts does Supadrain have?

The Supadrain Pro Line system provides 8 knockouts per metre, giving flexibility when positioning the drainage outlet.

Is Supadrain Pro Line made from recycled plastic?

Yes. The system is manufactured from recycled polypropylene and can be recycled again at the end of its useful life.

Is Supadrain Pro Line made in Britain?

Yes. Supadrain Pro Line is manufactured in Great Britain and is supplied with a 10-year guarantee.

Additional information

Weight 1.35 kg
