Tapco Slate Synthetic Plastic Hip / Ridge Tile

The Tapco Slate Synthetic Plastic Hip / Ridge Tile is the purpose-designed finishing tile for ridge and hip details on Tapco Slate Classic roofing systems.

Manufactured from a recyclable blend of plastic and dolomite limestone, the Hip / Ridge Tile complements the authentic texture, riven edges and natural slate appearance of Tapco Slate Classic while providing the durability and lightweight benefits of a modern synthetic roofing system.

Each tile measures 445mm long x 254mm wide x 150mm high, with an adjustable exposure between 152mm and 191mm. Approximately 5.5 Hip / Ridge Tiles are required per linear metre.

Available in Pewter Grey, Stone Black, Plum, Brick Red, Chestnut Brown, Red Rock and Olive Green.

Hip and Ridge Tile for Tapco Slate Classic

The Tapco Slate Hip / Ridge Tile is designed to complete the ridge and hip lines of compatible Tapco Slate Classic roofs.

The tile has a degree of flexibility when fixing, allowing it to form the required finishing detail while maintaining the distinctive slate-effect appearance of the main roof covering.

It provides the dedicated finishing component for a complete Tapco Slate roofing installation rather than using an unrelated ridge product.

Suitable for Roof Ridges and Hips

The same component can be used for appropriate:

• Roof ridge details
• Hip details
• Tapco Slate Classic roofing installations

This allows the appearance of the synthetic slate covering to continue across the principal finishing details of the roof.

Authentic Natural Slate Appearance

Tapco Slate Classic is authentically shaped using textured surfaces and riven edges moulded from natural slate.

This allows the synthetic roofing system to closely reproduce the appearance and character of traditional slate while providing the consistency and practical advantages of a manufactured roofing product.

The dedicated Hip / Ridge Tile provides a complementary finish across the roof ridge and hips.

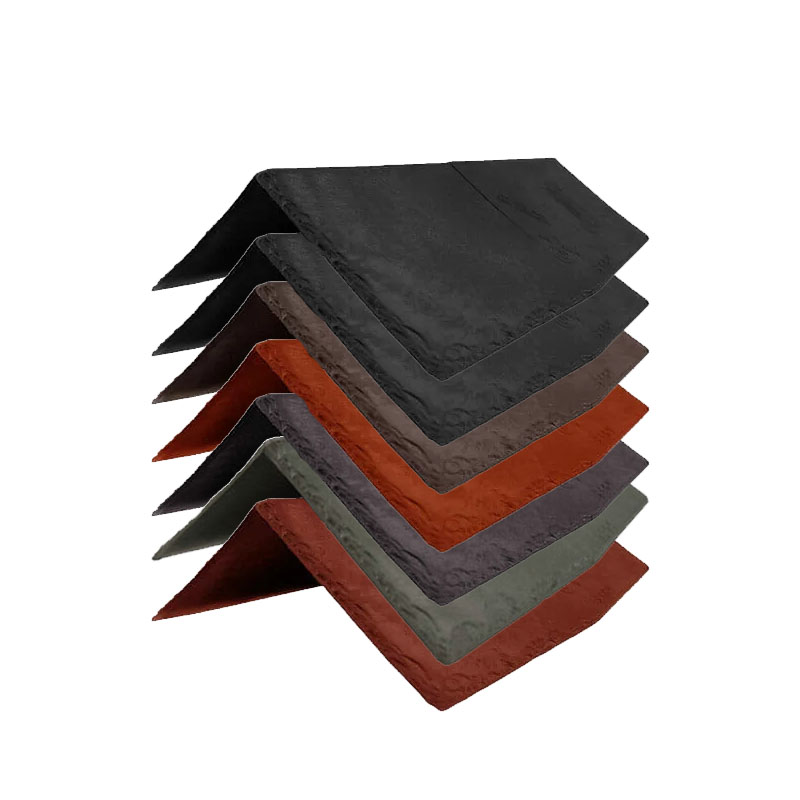

Available in Seven Colours

The Tapco Slate Synthetic Plastic Hip / Ridge Tile is available in:

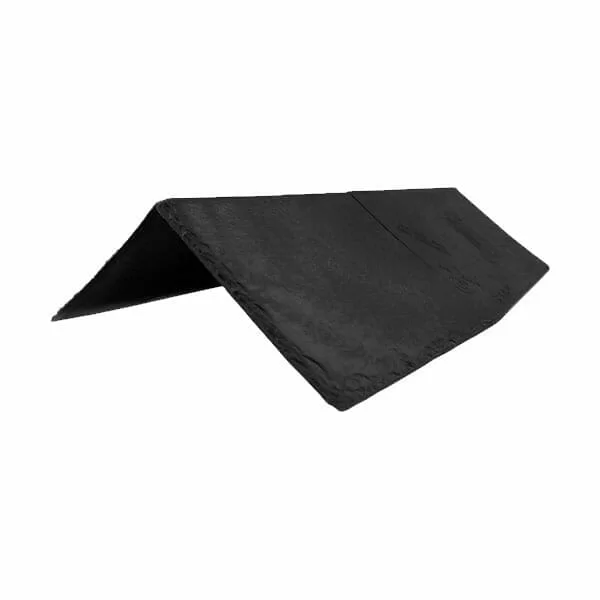

• Pewter Grey (804)
• Stone Black (801)
• Plum (706)
• Brick Red (709)

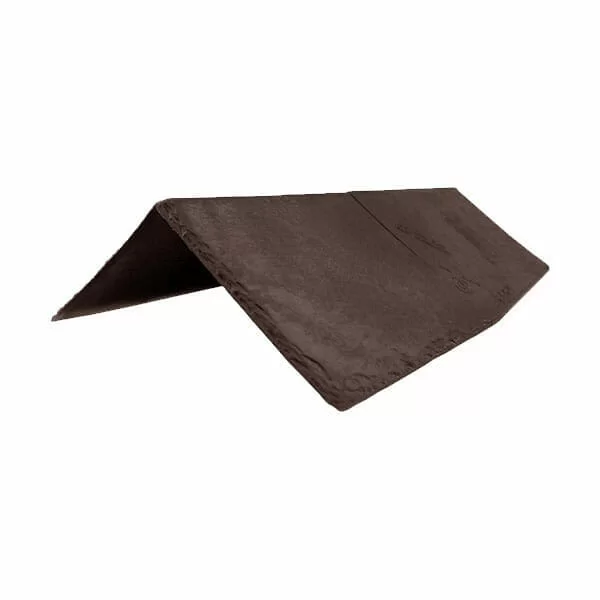

• Chestnut Brown (712)

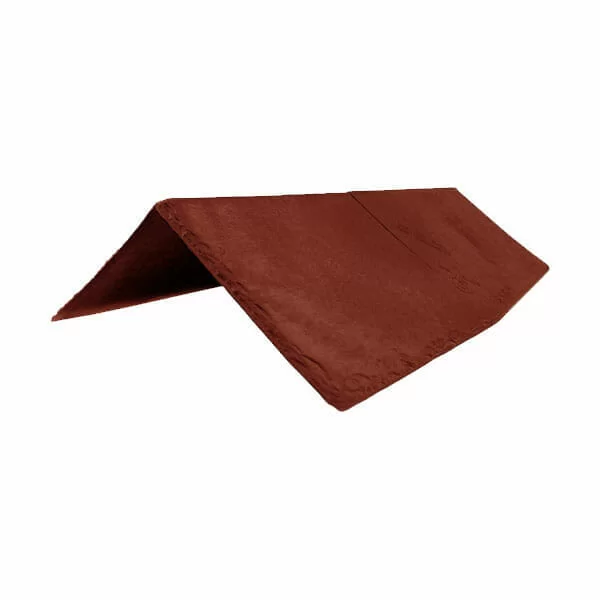

• Red Rock (809)

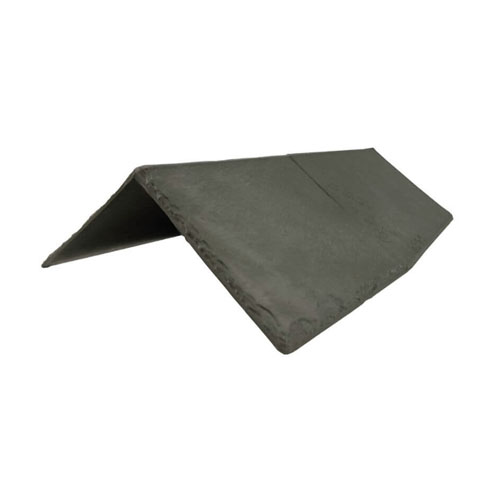

• Olive Green (814)

Select the appropriate colour to coordinate with the corresponding Tapco Slate Classic roof tiles.

5.5 Ridge Tiles per Linear Metre

The stated coverage rate is approximately:

5.5 Hip / Ridge Tiles per linear metre

This makes it straightforward to estimate the quantity required from the combined length of the roof ridges and hips.

The actual quantity should allow for the particular roof design, cuts and installation requirements.

How Many Tapco Slate Ridge Tiles Do I Need?

To estimate the number required:

Total Ridge and Hip Length (m) × 5.5 = Number of Hip / Ridge Tiles

Always round the result up to a complete tile.

For example, a roof with 8 metres of combined ridge and hip length would require:

8 × 5.5 = 44 tiles

Therefore, approximately:

44 Tapco Slate Hip / Ridge Tiles

Additional allowance should be made where required for cuts, waste and project-specific detailing.

Adjustable Exposure

The Tapco Slate Hip / Ridge Tile has a stated exposure range of:

6″ (152mm) to 7.5″ (191mm)

The appropriate exposure should be selected according to the roof design and manufacturer’s installation requirements.

Hip / Ridge Tile Dimensions

Each Tapco Slate Hip / Ridge Tile measures:

• Length: 17.5″ / 445mm
• Width: 10″ / 254mm
• Height: 5.9″ / 150mm
• Exposure: 6″ to 7.5″ / 152mm to 191mm

The tile has a degree of flexibility when fixing to assist with forming appropriate ridge and hip details.

Lightweight Synthetic Slate Roofing

Tapco Slate Classic provides an installed roofing weight from approximately:

12kg per m²

The lightweight construction makes the roofing system easier to handle than many traditional roofing materials while reducing the overall load imposed by the roof covering.

The supporting structure must still be suitable for the complete proposed roofing system.

Plastic and Dolomite Limestone Construction

Tapco Slate is manufactured from a recyclable blend of:

Plastic and dolomite limestone

The engineered material provides the appearance of natural slate while avoiding many of the practical disadvantages associated with brittle quarried slate.

Durable Alternative to Natural Slate

Tapco Slate Classic is designed not to:

• Crack
• Break
• Curl
• Lift
• Delaminate

The material is also stated to be impermeable to water and provides excellent weathering characteristics.

This makes Tapco Slate a durable synthetic alternative for projects requiring the appearance of traditional slate.

Production-Induced Camber

Tapco Slate incorporates a production-induced camber designed to help the slates follow the contours of the roof.

This contributes to the installed fit of the roofing system and provides protection against wind uplift when installed in accordance with the manufacturer’s requirements.

Mechanically Fixed Hip and Ridge Tiles

Tapco Slate Hip / Ridge Tiles are mechanically fixed.

The specified fixing is:

Large-headed galvanised steel nails measuring 30mm x 2.5mm

These can be installed using a hammer or, where permitted by the installation conditions, a suitable nail gun.

Aluminium or copper nails may also be used, although the manufacturer notes that driving these through the slate can cause the softer nails to bend.

Cutting Tapco Slate Hip / Ridge Tiles

Tapco Slate can be cut using a:

• Fine-toothed handsaw
• Jigsaw
• Circular saw
• Sharp utility blade

Appropriate tools and personal protective equipment should be used when cutting and installing roofing materials.

Cold Weather Installation

Special requirements apply when installing Tapco Slate in cold weather.

Storage Before Installation

Tapco Slates should be stored in their original packaging in a facility where the temperature is:

7°C or higher

Pallets temporarily stored on site should be protected with suitable coverage.

Conditioning

Before installation, Tapco Slate should be conditioned at a temperature of at least:

7°C for 24 hours

Installation Down to 0°C

Tapco Slate may be installed at temperatures as low as:

0°C

However, at temperatures below 7°C, the tiles must be hand fastened.

A pneumatic nail gun should not be used below 7°C, as this can result in cracking and webbing around the fastened area.

Storage Requirements

Tapco Slate should not be stored on roof decks in a manner that could over-stress or damage the roof deck or supporting structure.

The weight and distribution of roofing materials should therefore be considered when loading the roof prior to installation.

BBA Certified

Tapco Slate Classic is:

BBA Certified

The applicable BBA certification and manufacturer installation documentation should be consulted when designing and installing the complete roofing system.

Key Benefits

• Dedicated Hip and Ridge Tile: Designed for Tapco Slate Classic roofing.
• Dual Purpose: Suitable for compatible ridge and hip details.
• Natural Slate Appearance: Complements the textured and riven appearance of Tapco Slate.
• Flexible When Fixing: Designed with a degree of flexibility for ridge and hip installation.
• 5.5 Tiles per Linear Metre: Straightforward quantity calculation.
• Adjustable Exposure: 152mm to 191mm exposure.
• Seven Colours: Available to coordinate with Tapco Slate Classic roof tiles.
• Lightweight System: Tapco Slate roofing weighs from approximately 12kg/m².
• Durable Construction: Designed not to crack, break, curl or delaminate.
• Water Impermeable: Designed to provide excellent weathering characteristics.
• Mechanically Fixed: Suitable for fixing with the specified roofing nails.
• Recyclable Material: Manufactured from a recyclable plastic and dolomite limestone blend.
• BBA Certified: Part of the certified Tapco Slate Classic roofing system.
• Suitable for Cold Weather Installation: Installation possible down to 0°C when the specified cold-weather procedure is followed.

Product Specification

• Brand: Tapco
• Range: Tapco Slate Classic
• Product: Synthetic Plastic Hip / Ridge Tile
• Product Type: Hip and Ridge Roofing Tile
• Material: Recyclable Plastic and Dolomite Limestone Composite
• Length: 445mm
• Width: 254mm
• Height: 150mm
• Exposure: 152mm to 191mm
• Coverage: Approximately 5.5 Tiles per Linear Metre
• System Installed Weight: From Approximately 12kg/m²
• Fixing: Mechanically Fixed
• Recommended Fixing: Large-Headed Galvanised Steel Nails
• Nail Size: 30mm x 2.5mm
• Certification: BBA Certified

Available Colours

• Pewter Grey (804)
• Stone Black (801)
• Plum (706)
• Brick Red (709)
• Chestnut Brown (712)
• Red Rock (809)
• Olive Green (814)

What Is a Tapco Slate Hip / Ridge Tile?

The Tapco Slate Hip / Ridge Tile is the dedicated synthetic slate finishing component used along the ridges and hips of a compatible Tapco Slate Classic roof.

It complements the appearance of the main roof tiles while providing the flexibility required to form appropriate ridge and hip details.

Can the Same Tapco Slate Tile Be Used for Ridges and Hips?

Yes. This component is designed as a combined Hip / Ridge Tile and can be used for appropriate ridge and hip details within the Tapco Slate roofing system.

How Many Tapco Slate Ridge Tiles Are Required per Metre?

Approximately:

5.5 tiles per linear metre

The actual quantity should be calculated using the total ridge and hip length and should include an appropriate allowance for the particular roof design.

What Is the Exposure of a Tapco Slate Ridge Tile?

The stated exposure range is:

152mm to 191mm

or:

6″ to 7.5″

What Size Is a Tapco Slate Hip / Ridge Tile?

Each tile measures approximately:

445mm long x 254mm wide x 150mm high

How Are Tapco Slate Ridge Tiles Fixed?

The specified fixing is a:

30mm x 2.5mm large-headed galvanised steel nail

The tiles can be fixed using a hammer or suitable nail gun, subject to the installation temperature and manufacturer’s requirements.

Can Tapco Slate Be Nail-Gunned in Cold Weather?

Not below 7°C.

Tapco Slate can be installed at temperatures down to 0°C, but when the temperature is below 7°C the product must be hand fastened.

The manufacturer states that using a pneumatic nail gun below 7°C can result in cracking and webbing around the fixing area.

How Should Tapco Slate Be Stored in Cold Weather?

Before installation, Tapco Slate should be stored in its original packaging at a temperature of at least 7°C and conditioned at no less than 7°C for 24 hours before use.

Pallets temporarily stored on site should also be appropriately protected.

Can Tapco Slate Hip / Ridge Tiles Be Cut?

Yes. Suitable cutting tools include a fine-toothed handsaw, jigsaw, circular saw or sharp utility blade.

Why Choose Tapco Slate Hip / Ridge Tiles?

The Tapco Slate Synthetic Plastic Hip / Ridge Tile provides the dedicated finishing component for ridge and hip details on a Tapco Slate Classic roof.

Manufactured from a recyclable blend of plastic and dolomite limestone, the tile combines the natural texture and character of slate with the lightweight construction, durability and consistency of an engineered roofing material.

With dimensions of 445mm x 254mm x 150mm, an adjustable 152mm to 191mm exposure and coverage of approximately 5.5 tiles per linear metre, quantities can be calculated directly from the total ridge and hip length.

Available in seven Tapco Slate colours, these purpose-designed tiles allow the distinctive synthetic slate finish to continue across the principal ridge and hip details of the roof.

For customers searching for Tapco Slate ridge tiles, Tapco hip tiles, synthetic slate ridge tiles, plastic ridge tiles, artificial slate hip tiles or Tapco Slate Classic roof fittings, this combined Hip / Ridge Tile provides the matching finishing component for the Tapco Slate roofing system.

Installation note: Follow the current manufacturer’s installation requirements for the roof covering, underlay or membrane and associated components, together with applicable building regulations.
