Werner Stowaway Complete Timber Loft Access Kit (34536000)

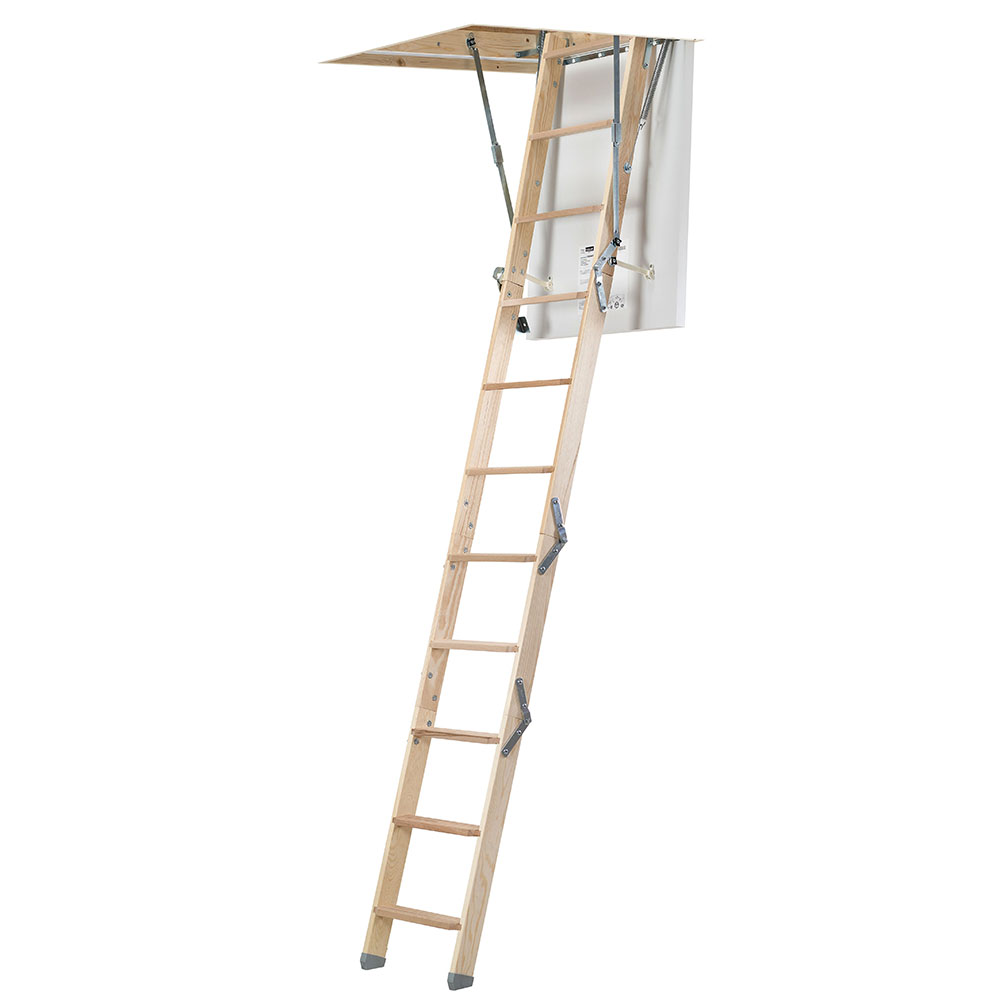

Werner Stowaway Complete Timber Loft Access Kit

The Werner Stowaway Timber Loft Access Kit is ultra-compact and designed to fit securely into smaller hatches without the need for joist alterations, making this the ideal solution for users with limited space. Featuring a spring-assisted stowage mechanism for effortless opening and closing of the loft ladder, the Stowaway surround is sized just 0.90m x 0.58m, making this one of the most compact timber loft kits in the world. Ideal for those looking for a safe access solution to the loft. Ideal choice for individuals seeking a compact and secure access solution to their loft, especially when dealing with small hatch openings.

Suitable for floor to ceiling heights up to 2.84m.

Werner Stowaway Complete Timber Loft Access Kit Features:

• Ultra-compact – ideal for tight/small hatch openings
• 36mm insulated trapdoor and rubber draught excluder prevents loss of heat and reduces draughts
• Ladder folds and is stored onto the trapdoor to maximise loft space
• Spring-assisted stowage for smooth opening and closing
• Slip-resistant treads for comfortable climbing
• Plastic slip-resistant feet for added stability
• Supplied as a semi-assembled unit with a compact four-section timber loft ladder, insulated draught-proof trapdoor, loft surround, spring-assisted stowage mechanism, and a timber stowing pole
• 150kg load capacity*
• 5 year guarantee against defects in workmanship and materials**

Werner Stowaway Complete Timber Loft Access Kit Specification:

• Size: 2.84m
• Style: Loft Access Kit
• Model ID: 34536000
• Ladder Material: Timber
• Foot Material: Plastic
• Certifications: EN14975, EN 12207 Class 4
• Standard Classification: Domestic
• Number of Sections 4
• Sections x Rungs 4 x 3
• Number of Treads 12
• Number of People for Installation 1
• Unique Features: Small Hatch Openings,Limited Loft Space,Insulated,Space-saving
• Loft Features: Space-saving, Limited Loft Space, Small Hatch Openings, Insulated
• Unique Benefit: Ultra-compact for tight spaces
• Fire Rated: No
• Opening Device: Timber Pull and Push Rod
• Door Included: Yes
• Fits within Standard 0.6m Joist: Yes
• Height Extension Kit Available: No
• Handrail Included: No
• Hinge Clip Included: No
• Locking Device: Yes
• Pull Down Rod Included: Yes
• Requires Cutting Foot Angle: Yes
• Separate Foot Attachment: Yes
• Universal Stowing Pole Included: Yes

Werner Stowaway Complete Timber Loft Access Kit Dimensions:

• Product Weight (kg) 17.4kg
• Closed Length (m) 0.9m (2ft 11in)
• Closed Width (m) 0.58m (1ft 11in)
• Closed Depth (m) 0.32m (1ft 1in)
• Max Load (kg) 150kg (23st 9lb)
• Max. Floor to Ceiling Height (m) 2.84m (9ft 4in)
• Shipping Weight (kg) 20.1Kg
• Min. Floor to Ceiling Height (m) Cut to suit
• Ladder Width (m) 0.4m (1ft 4in)
• Tread Width (m) 0.38m (1ft 3in)
• Tread Spacing (m) 0.25m (10in)
• Tread Depth (m) 0.07m (3in)
• Opening Arc (m) 1.14m (3ft 9in)
• Max. Landing Space (m) 1.07m (3ft 6in)
• Trapdoor Insulation Thickness (mm) 36mm (1.5in), U-value 0.96
• Min. Loft Opening Length (m) 0.93m (3ft 1in)
• Min. Loft Floor Opening Size (LxW) (m) 0.93m x 0.60m (3ft 1in x 2ft)
• Casing Length (m) 0.9m (3ft)
• Casing Width (m) 0.58m (1ft 11in)
• Casing Height (m) 0.12m (5in)
• Shipping Dimensions L x W x D (m) 0.9m x 0.58m x 0.32m (2ft 11in x 1ft 11in x 1ft 1in)

Notes:

*Load includes user, tools, materials, etc.
**Guarantee against manufacture defects in workmanship or materials.
