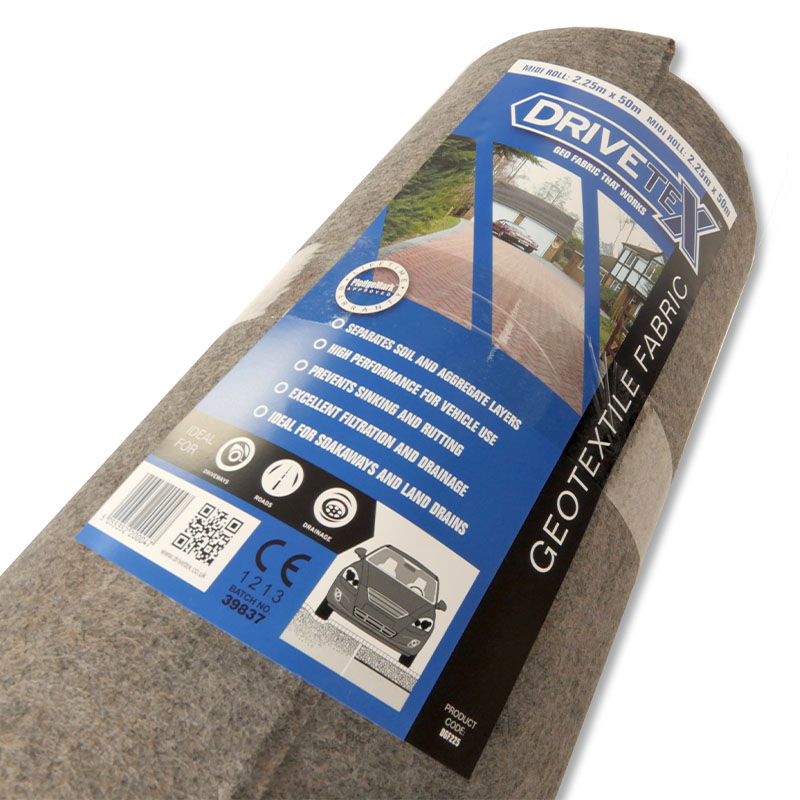

DRIVETEX Geotextile Fabric – 2.25m x 50m Roll (Folded)

DRIVETEX Geotextile Fabric is a heavy-duty non-woven driveway membrane designed for ground stabilisation, separation, filtration and drainage beneath driveways, roads and other areas of hardstanding. Manufactured from 100% virgin polypropylene fibres, DRIVETEX helps prevent sub-base aggregates from sinking into the underlying soil, improving the stability and performance of the construction.

Supplied as a 2.25m x 50m folded maxi roll, each roll provides 112.5m² nominal coverage and is suitable for professional groundwork, civil engineering, landscaping and building applications.

Why Choose DRIVETEX Geotextile Fabric?

Key benefits include:

  • 2.25m x 50m maxi roll
  • 112.5m² nominal coverage
  • Heavy-duty non-woven geotextile fabric
  • Manufactured from 100% virgin polypropylene fibres
  • 90gsm fabric
  • Designed for ground stabilisation
  • Provides separation between sub-base and sub-grade
  • Suitable for filtration and drainage applications
  • Helps prevent aggregate sinking and rutting
  • Helps prevent sub-base material being lost into the soil beneath
  • Suitable beneath MOT Type 1 and Type 3 aggregate
  • Suitable beneath hardcore sub-base layers
  • Ideal for driveways, roads and hardstanding
  • Suitable for groundwork and civil engineering
  • Folded roll for convenient handling

What Is DRIVETEX Geotextile Fabric Used For?

DRIVETEX is a professional driveway and ground stabilisation geotextile membrane designed for use in a wide range of groundwork, landscaping, building and civil engineering applications.

Typical applications include:

  • Roads and driveways
  • Highways
  • Railway construction
  • Car parks
  • Areas of hardstanding
  • Paved areas
  • Ground stabilisation
  • Sub-base separation
  • Land drains
  • Soakaways
  • SuDS installations
  • Drainage and filtration applications
  • Groundworks and landscaping

Its combination of separation, filtration and drainage properties makes DRIVETEX suitable for projects where the performance of aggregate sub-base layers needs to be maintained.

Geotextile Membrane for Driveways

DRIVETEX is particularly suited to use as a geotextile membrane beneath driveways.

Installed between the underlying soil or sub-grade and the aggregate sub-base, the membrane separates the two layers and helps prevent MOT Type 1, Type 3 or hardcore from gradually being pushed into the soil beneath.

Without suitable separation, aggregates can settle into softer sub-grades over time, contributing to movement, sinking and rutting at the finished surface.

DRIVETEX provides a separating geotextile layer that helps maintain the integrity of the sub-base construction.

Helps Prevent Aggregate Pumping

One of the principal functions of DRIVETEX is to help prevent a process commonly known as pumping.

Pumping occurs when aggregate from the sub-base layer becomes forced or settles into the underlying soil. This can reduce the effectiveness and depth of the sub-base, potentially contributing to instability, settlement and rutting.

Installing DRIVETEX between the sub-grade and aggregate sub-base provides separation between the different materials, helping prevent aggregate migration into the soil beneath.

Suitable Beneath MOT Type 1, Type 3 and Hardcore

DRIVETEX can be installed beneath suitable aggregate sub-base materials including:

  • MOT Type 1 aggregate
  • MOT Type 3 aggregate
  • Hardcore

This makes the geotextile suitable for both traditional hardstanding construction and applications where permeable sub-base materials such as Type 3 aggregate are specified.

The complete build-up and depth of each layer should follow the requirements of the particular project and expected loading.

Separation, Filtration and Drainage

DRIVETEX performs several useful functions within suitable ground constructions.

Separation

The geotextile creates a separating layer between the sub-grade and aggregate sub-base, helping prevent the different materials from mixing.

Filtration

Its non-woven construction allows DRIVETEX to perform a filtration function within appropriate ground and drainage applications.

Drainage

DRIVETEX can be incorporated into suitable drainage applications including land drains, soakaways and SuDS installations.

Ground Stabilisation

By maintaining separation between construction layers, DRIVETEX helps improve the stability and integrity of suitable sub-base constructions.

Non-Woven Polypropylene Geotextile

DRIVETEX is manufactured from 100% virgin polypropylene fibres in a non-woven construction.

The heavy-duty 90gsm geotextile fabric is designed for professional ground stabilisation, filtration and drainage applications.

2.25m x 50m Folded Maxi Roll

Each DRIVETEX roll measures:

2.25m wide x 50m long

Providing a nominal area of:

2.25m x 50m = 112.5m²

Actual usable coverage will be lower where overlaps, cutting, detailing and wastage are required.

The material is supplied as a folded maxi roll, providing a more convenient format for handling, transportation and storage.

DRIVETEX Geotextile Fabric Specification

Specification Details
Product DRIVETEX Geotextile Fabric
Product Type Non-Woven Geotextile Membrane
Material 100% Virgin Polypropylene Fibres
Fabric Weight 90gsm
Roll Width 2.25m
Roll Length 50m
Nominal Coverage 112.5m²
Roll Type Maxi Roll
Format Folded
Functions Separation, Filtration, Drainage & Ground Stabilisation
Suitable Sub-Base Materials MOT Type 1, MOT Type 3 & Hardcore
Typical Applications Driveways, Roads, Hardstanding, Paved Areas, Drainage & Groundworks

Frequently Asked Questions

What size is a roll of DRIVETEX Geotextile Fabric?

Each roll measures 2.25m wide x 50m long.

How much area does one DRIVETEX roll cover?

A 2.25m x 50m roll provides 112.5m² of nominal coverage.

Actual usable coverage will be lower once required overlaps, cutting and wastage are taken into account.

What is DRIVETEX made from?

DRIVETEX is manufactured from 100% virgin polypropylene fibres.

What weight is DRIVETEX Geotextile Fabric?

The fabric is specified as 90gsm.

Is DRIVETEX woven or non-woven?

DRIVETEX is a non-woven geotextile fabric.

Can DRIVETEX be used under a driveway?

Yes. DRIVETEX is specifically designed as a heavy-duty driveway membrane and can be installed beneath suitable aggregate sub-base layers.

Does geotextile fabric go underneath MOT Type 1?

DRIVETEX is designed for installation beneath MOT Type 1, MOT Type 3 or hardcore sub-base layers, separating the aggregate from the underlying sub-grade.

What does a geotextile membrane do under a driveway?

DRIVETEX separates the aggregate sub-base from the soil beneath, helping prevent the aggregate from sinking or being forced into the sub-grade. This helps maintain the integrity of the sub-base and reduce the risk of settlement and rutting.

What is pumping in a driveway sub-base?

Pumping describes the process where aggregate within the sub-base becomes forced or settles into the underlying soil. This can result in loss of sub-base material into the sub-grade and contribute to sinking or rutting.

A suitable separation geotextile such as DRIVETEX helps prevent the aggregate and underlying soil from mixing.

Can DRIVETEX be used beneath Type 3 aggregate?

Yes. DRIVETEX can be used beneath MOT Type 3 aggregate as part of a suitably designed sub-base construction.

Can DRIVETEX be used for drainage?

Yes. DRIVETEX provides filtration and drainage functions and can be used within suitable applications including land drains, soakaways and SuDS installations.

Can it be used under paving?

Yes. DRIVETEX is suitable for paved areas and other areas of hardstanding where ground stabilisation and separation are required.

Can DRIVETEX be used for car parks?

Yes. Typical applications include car parks and areas of hardstanding, subject to the overall construction being appropriately designed for the expected loading.

Do I need to allow for overlaps?

Yes. The 112.5m² figure is the nominal area of the complete roll. Allowance should be made for appropriate overlaps, cutting, detailing and wastage when calculating the quantity required.

DRIVETEX Heavy-Duty Driveway & Ground Stabilisation Geotextile

For driveways, roads, hardstanding, paving and professional groundwork applications, DRIVETEX Geotextile Fabric provides a durable non-woven separation, filtration and drainage layer.

Manufactured from 100% virgin polypropylene fibres, this 90gsm geotextile is designed for installation beneath MOT Type 1, Type 3 and hardcore sub-base layers, helping prevent aggregate from sinking into the sub-grade and reducing the risk of settlement and rutting.

Supplied as a folded 2.25m x 50m maxi roll, DRIVETEX provides 112.5m² nominal coverage for groundwork, landscaping, building and civil engineering applications.

Installation Guide

Download Guide
Download TDS
