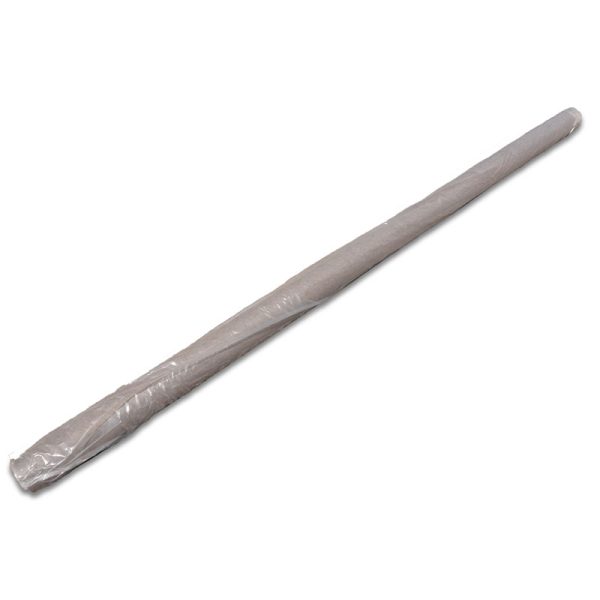

DRIVETEX Geotextile Fabric is a heavy-duty non-woven driveway membrane designed for ground stabilisation, separation, filtration and drainage beneath driveways, roads and large areas of hardstanding. Manufactured from 100% virgin polypropylene fibres, DRIVETEX helps prevent sub-base aggregates from sinking into the underlying soil, improving the stability and performance of the construction.
Supplied as a large 4.5m x 50m contractor roll, each roll provides 225m² nominal coverage, making it particularly suitable for larger groundwork, civil engineering, landscaping and building projects.
Key benefits include:
DRIVETEX is a professional driveway and ground stabilisation geotextile membrane designed for a wide range of groundwork, landscaping, building and civil engineering applications.
Typical applications include:
Its combination of separation, filtration and drainage properties makes DRIVETEX suitable for projects where the performance of aggregate sub-base layers needs to be maintained.
DRIVETEX is particularly suited to use as a geotextile membrane beneath driveways.
Installed between the underlying soil or sub-grade and the aggregate sub-base, the membrane separates the two layers and helps prevent MOT Type 1, Type 3 or hardcore from gradually being pushed into the soil beneath.
Without suitable separation, aggregates can settle into softer sub-grades over time, contributing to movement, sinking and rutting at the finished surface.
DRIVETEX provides a separating geotextile layer that helps maintain the integrity of the sub-base construction.
One of the principal functions of DRIVETEX is to help prevent a process commonly known as pumping.
Pumping occurs when aggregate from the sub-base layer becomes forced or settles into the underlying soil. This can reduce the effective depth and performance of the sub-base, potentially contributing to instability, settlement and rutting.
Installing DRIVETEX between the sub-grade and aggregate sub-base provides separation between the different materials, helping prevent aggregate migration into the soil beneath.
DRIVETEX can be installed beneath suitable aggregate sub-base materials including:
This makes the geotextile suitable for both traditional hardstanding construction and applications where permeable sub-base materials such as Type 3 aggregate are specified.
The complete construction and depth of each layer should follow the requirements of the particular project and expected loading.
DRIVETEX performs several useful functions within suitable ground constructions.
The geotextile creates a separating layer between the sub-grade and aggregate sub-base, helping prevent the different materials from mixing.
Its non-woven construction allows DRIVETEX to perform a filtration function within appropriate ground and drainage applications.
DRIVETEX can be incorporated into suitable drainage applications including land drains, soakaways and SuDS installations.
By maintaining separation between construction layers, DRIVETEX helps improve the stability and integrity of suitable sub-base constructions.
DRIVETEX is manufactured from 100% virgin polypropylene fibres in a non-woven construction.
The heavy-duty 90gsm geotextile fabric is designed for professional ground stabilisation, filtration and drainage applications across groundwork, landscaping, building and civil engineering projects.
Each DRIVETEX contractor roll measures:
4.5m wide x 50m long
Providing a nominal area of:
4.5m x 50m = 225m²
Actual usable coverage will be lower where overlaps, cutting, detailing and wastage are required.
The large 4.5m width makes this contractor roll particularly suitable for covering substantial areas and can help reduce the number of separate runs and joints required compared with narrower roll sizes.
| Specification | Details |
|---|---|
| Product | DRIVETEX Geotextile Fabric |
| Product Type | Non-Woven Geotextile Membrane |
| Material | 100% Virgin Polypropylene Fibres |
| Fabric Weight | 90gsm |
| Roll Width | 4.5m |
| Roll Length | 50m |
| Nominal Coverage | 225m² |
| Roll Type | Contractor Roll |
| Functions | Separation, Filtration, Drainage & Ground Stabilisation |
| Suitable Sub-Base Materials | MOT Type 1, MOT Type 3 & Hardcore |
| Typical Applications | Driveways, Roads, Hardstanding, Paved Areas, Drainage & Groundworks |
Each contractor roll measures 4.5m wide x 50m long.
A 4.5m x 50m roll provides 225m² of nominal coverage.
Actual usable coverage will be lower once required overlaps, cutting and wastage are taken into account.
DRIVETEX is manufactured from 100% virgin polypropylene fibres.
The fabric is specified as 90gsm.
DRIVETEX is a non-woven geotextile fabric.
Yes. DRIVETEX is specifically designed as a heavy-duty driveway membrane and can be installed beneath suitable aggregate sub-base layers.
DRIVETEX is designed for installation beneath MOT Type 1, MOT Type 3 or hardcore sub-base layers, separating the aggregate from the underlying sub-grade.
DRIVETEX separates the aggregate sub-base from the soil beneath, helping prevent aggregate from sinking or being forced into the sub-grade. This helps maintain the integrity of the sub-base and reduce the risk of settlement and rutting.
Pumping is the process where aggregate within the sub-base becomes forced or settles into the underlying soil. This can result in loss of sub-base material into the sub-grade and contribute to sinking or rutting.
A suitable separation geotextile such as DRIVETEX helps prevent the aggregate and underlying soil from mixing.
Yes. DRIVETEX can be used beneath MOT Type 3 aggregate as part of a suitably designed sub-base construction.
Yes. DRIVETEX provides filtration and drainage functions and can be used within suitable applications including land drains, soakaways and SuDS installations.
Yes. DRIVETEX is suitable for paved areas and other areas of hardstanding where ground stabilisation and separation are required.
Yes. Typical applications include car parks and areas of hardstanding, subject to the overall construction being appropriately designed for the expected loading.
The contractor roll provides 225m² nominal coverage, making it particularly suitable for larger groundwork and civil engineering projects.
Its 4.5m width also allows larger areas to be covered with fewer runs than the narrower DRIVETEX roll options, potentially reducing the number of joints and overlaps required.
All three options are manufactured from 90gsm non-woven 100% virgin polypropylene fibres. The primary difference is their dimensions and nominal coverage:
This allows the most appropriate roll size to be selected according to the scale of the project.
Yes. The 225m² figure is the nominal area of the complete roll. Allowance should be made for appropriate overlaps, cutting, detailing and wastage when calculating the quantity required.
For large driveways, roads, hardstanding, paving and professional groundwork applications, DRIVETEX Geotextile Fabric provides a durable non-woven separation, filtration and drainage layer.
Manufactured from 100% virgin polypropylene fibres, this 90gsm geotextile is designed for installation beneath MOT Type 1, Type 3 and hardcore sub-base layers, helping prevent aggregate from sinking into the sub-grade and reducing the risk of settlement and rutting.
Supplied as a large 4.5m x 50m contractor roll, DRIVETEX provides 225m² nominal coverage, making it an efficient option for larger groundwork, landscaping, building and civil engineering projects.
| Download Guide | |
| Download TDS |
