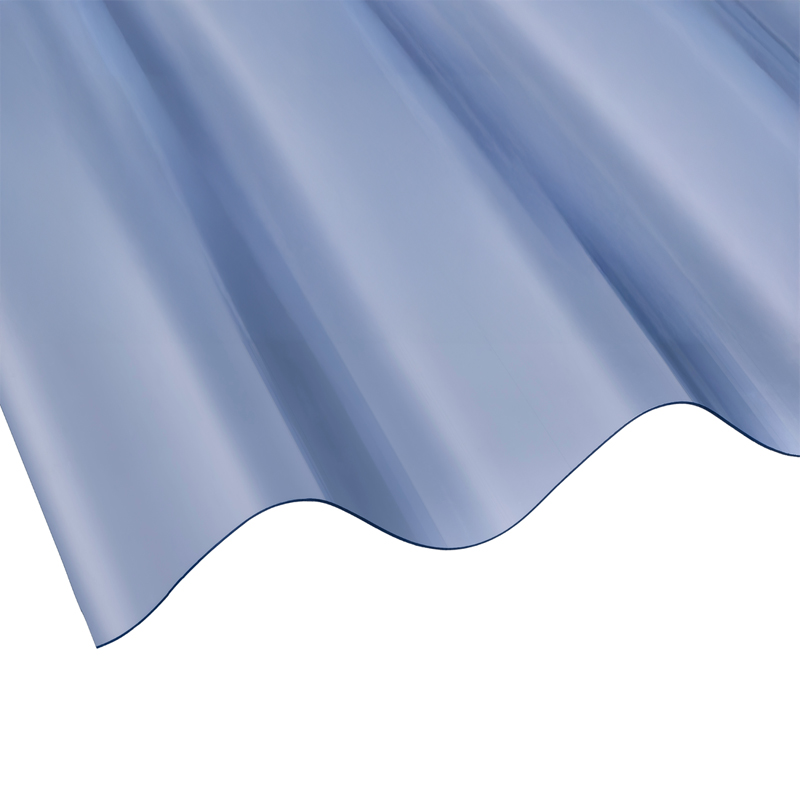

Vistalux 1.3mm PVC Corrugated Roofing Sheet – ASB 6″ (BIG 6) Superweight – Clear

Vistalux corrugated sheeting is the ideal general purpose PVC sheet for roofing and cladding. Economic, lightweight and easy to install, Vistalux PVC is a versatile corrugated rooflight sheet for car ports, canopies and gazebos. It is easy to cut, drill and install with standard DIY tools and is available in a choice of corrugated profiles, weight options and in clear or translucent tint options.

Vistalux corrugated PVC roofing and cladding sheet is available in a choice of profile options and sheet weights. It is guaranteed for 10 years.

Vistalux 1.3mm PVC Corrugated Roofing Sheet Features:

• To match the profile of 6″ (BIG 6) asbestos (ASB) roof corrugations.
• Superweight for extra durability.
• Accessories to match profile.
• UV resistant for durability.
• Durable and hardwearing.
• 10 year warranty.

Minimum Pitch: 5°
Maximum Pitch: 90°
Thickness: 1.3mm
Overall Width: 1086mm
Cover Width: 1016mm

Refer to the Vistalux installation guide and installation video for complete installation instructions.

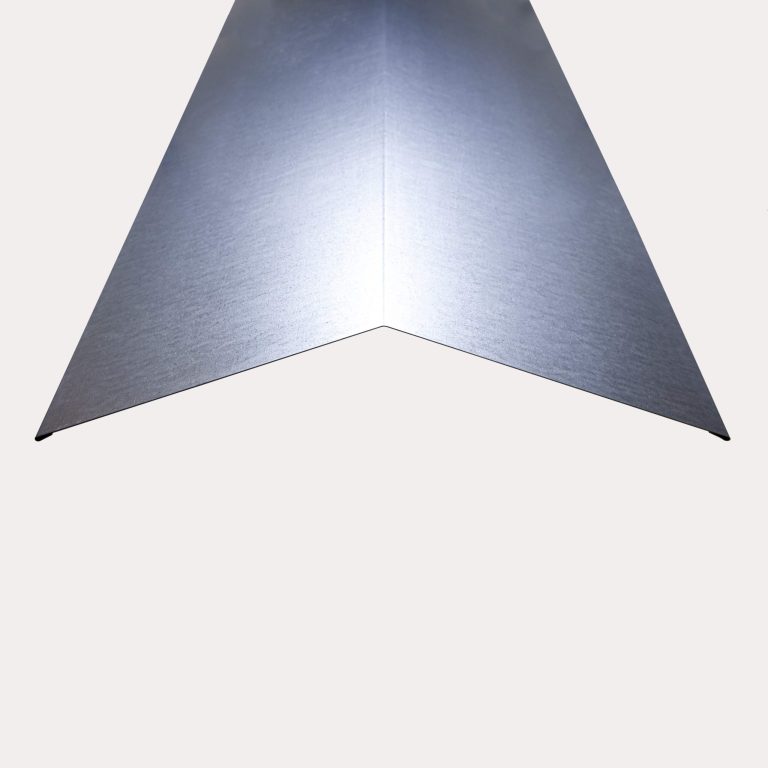

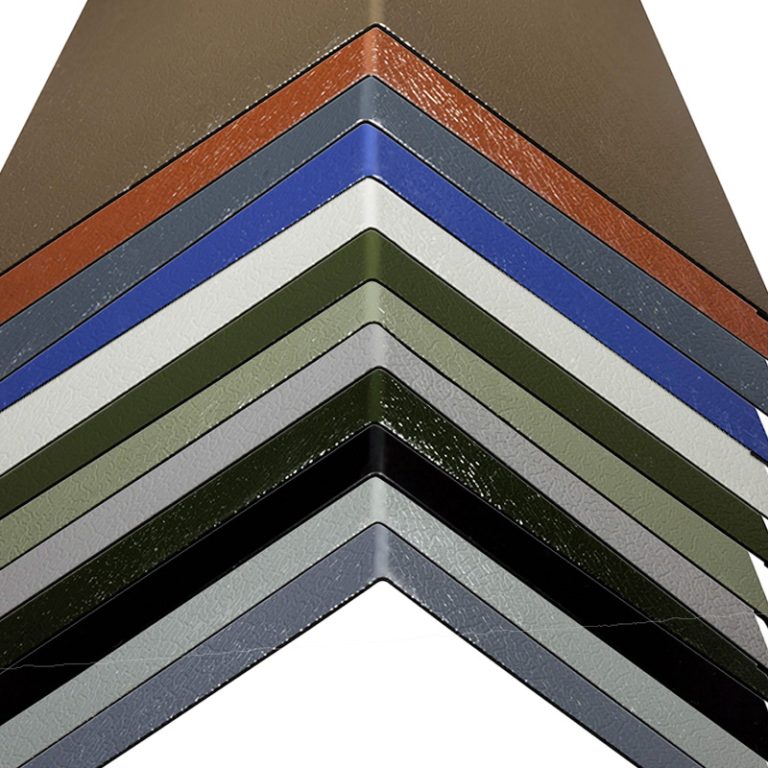

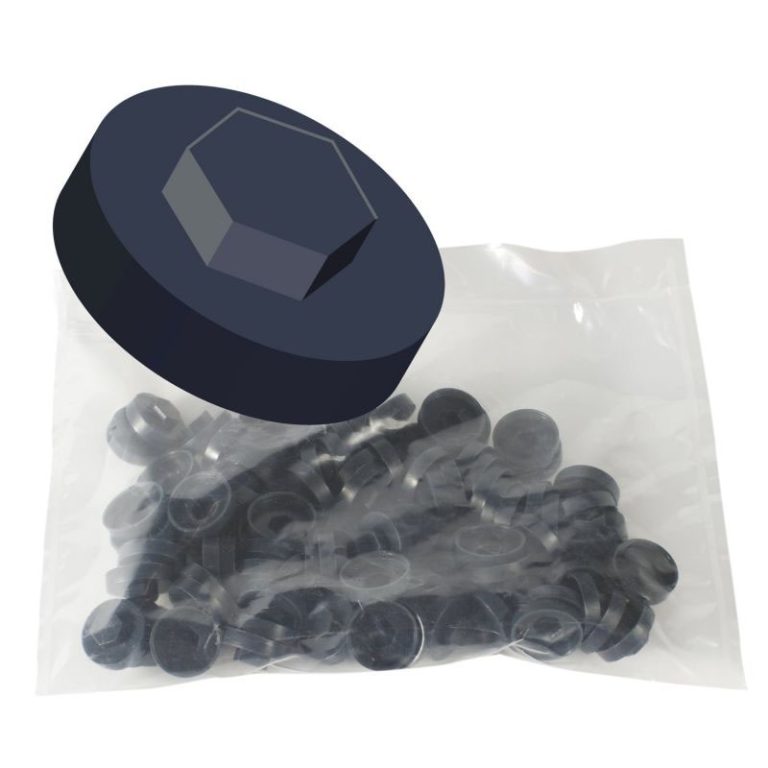

Accessories
Ensure correct accessories are chosen to match PVC sheet profile.

Sheet Requirements
To calculate the number of sheets required to complete your roof, measure the width of the roof and divide this figure by the cover width i.e. using 6″ Asbestos profile sheet the roof is 3000mm wide, divide by the cover width which is 1016mm = 2.95 sheets. Round this figure up to the nearest full sheet – 3 sheets will be required.

Fixings Requirements
Divide the roof width by the fixing centres. Divide the roof length by the support centres and add 1.
Multiply these two values together.

= approximate number of fixings required.

10 Year Warranty
This product is covered by a 10 year warranty. A replacement is provided free of charge if the product has failed due to a manufacturing defect, in normal climatic conditions within a 10 year period from the date of purchase.

Vistalux MUST be fixed and maintained in accordance with the manufacturer’s instructions for the warranty to remain valid: re-erections or consequential damage costs are not included.
